DC/DC Step-Down converter with 1.2-30 V 5A output

DC/DC Step-Down converter with 1.2-30 V 5A output

SKU TPX00183 Barcode 7630049204485 Show more
$6.00 - $6.00
$6.00
$6.00 - $6.00
$6.00

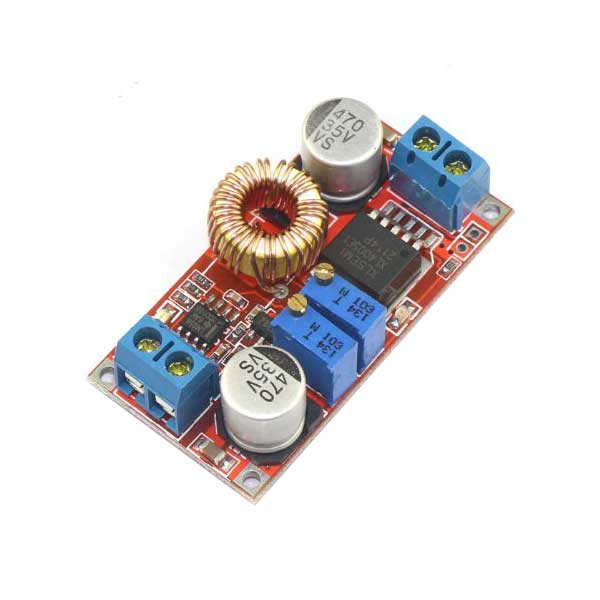

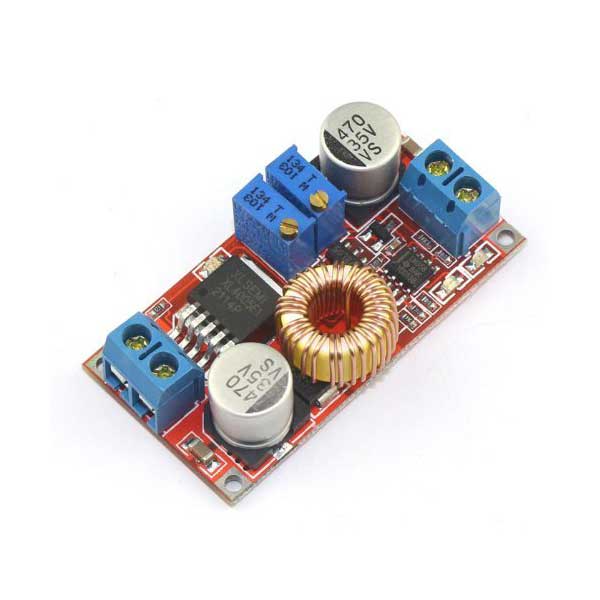

DC/DC Step-Down converter.

Overview

DC/DC Step-Down converter that allows to convert a continuous voltage input between 5 and 32 volts into an output voltage from 1.2 to 30 volts (adjustable via trimmer).

The maximum available current is about 5 A.

Tech specs

  • Input voltage: from 5 Vdc to 32 Vdc
  • Output voltage: from 1.2 Vdc to 30 Vdc (adjustable)
  • Output current: 5 A
  • Conversion efficiency: 90%
  • Output ripple: 50 mV (max)
  • Dimensions (mm): 51×26.3×14
  • Operating temperature: from -40°C to +85°C
