Overview

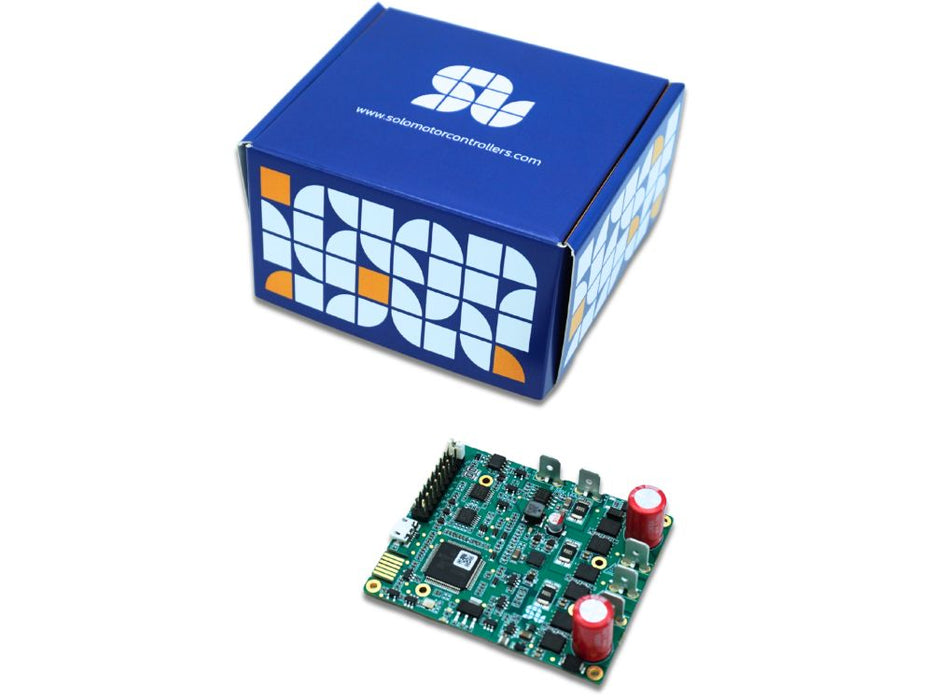

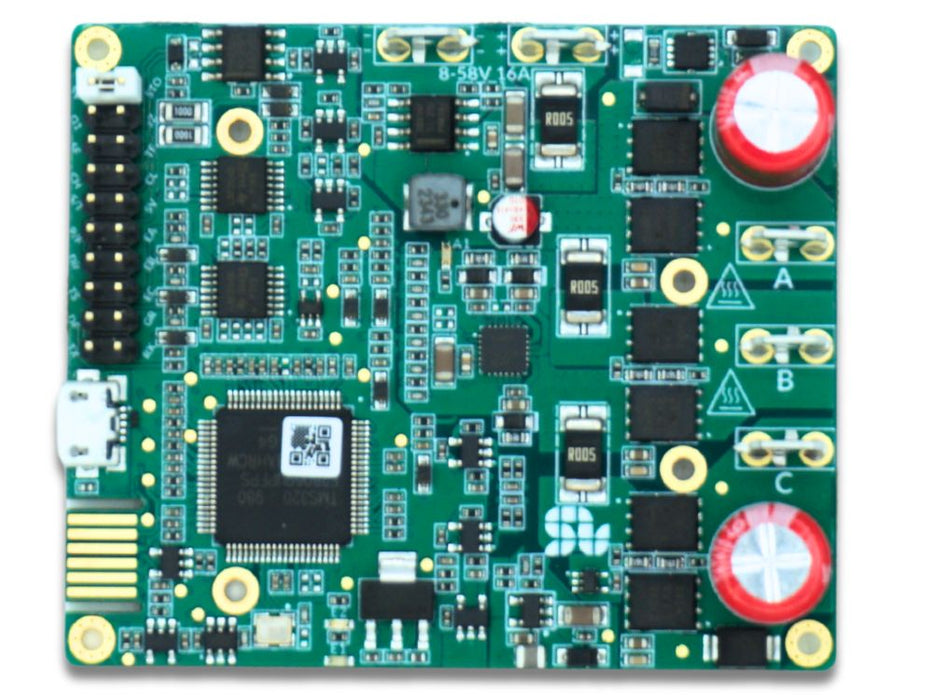

SOLO PICO is a 300W member of the SOLO motor controllers family of devices capable of driving and controlling various types of electrical motors like DC brushed, BLDC, PMSM, AC Induction motors in a single platform.
They are made to be easy to use with state of art technologies and Dual Core parallel processing architecture on top of FOC control methods.
They offer both sensor-based and sensor-less options for Speed, Torque and Position controlling plus other options like full digital and analog controls and active safety measures to keep the applications safe.
Tech specs
| Features | Modes of Operation | Commands and feedback Source | Ratings |
| Dedicated Arduino Libary | Analogue or Digital commanding | 0-5V Analogue / PWM inputs for Speed or Torque control | Supply Voltage Range: 8 - 58 VDC |
| Online Control Capablility (Motion Termianl) | Speed, Torque and Position control | UART, USB, CANopen control | Continuous DC Current: 16 ADC |
| Continuos Free Firmware Updates | Sensor-based and Sensor-less control | Sensor-based and Sensor-less control | Continuous AC Current: 11.5 Arms |
Conformities
The following Declarations of Conformities have been granted for this board:
CE
RoHS
For any further information about our certifications please visit docs.arduino.cc/certifications
Get Inspired
FAQs
- Where to find a starting Arduino Example? Here the Hello World Example
- How to start to command the Motor Controller? You can use this online GUI
- Need extra support? Here the dedicated forum
