Overview
Modulino™ LED Matrix brings your projects to life with customizable visual output, from simple indicators to playful pixel animations.
The Modulino collection includes a variety of plug-and-play smart components that transform complex electronics into simple, interactive projects with minimal code and maximum creativity.
Discover a new generation of ready-to-use sensors and actuators that simplify any build. Designed for makers, educators, and professionals, Modulino nodes connect effortlessly via Qwiic cables and work together as a unified system thanks to daisy-chain technology.
Start easy, advance quickly
Both beginners and experienced developers can implement sophisticated features thanks to a dedicated Modulino library (supporting both Arduino language and MicroPython).
And after the first project is done? Consistent design across all Modulino nodes gives you the flexibility to swap them and integrate them into a variety of new ideas, while breakout pins allow advanced users to push customization further.
Key benefits
- Plug-and-play connectivity.
Quickly connect Modulino nodes to Arduino UNO Q, Nesso N1, UNO R4 WiFi or Nano boards, using the Arduino Nano Connector Carrier for fast, reliable integration. - Robust, ready-to-use design.
Preassembled, compact modules built to support demanding edge IoT projects. - Effortless expansion.
Easily add new sensors, actuators, or controllers without redesigning your hardware. - Seamless Arduino ecosystem integration.
Leverage Arduino software, Cloud tools, and community support to accelerate development.
Meet all the Modulino™ nodes!
In addition to Modulino LED Matrix, you can explore all the Modulino nodes in the range!
- Modulino™ Knob: for super-fine value adjustments
- Modulino™ Pixels: eight LEDs to shine bright, dim down, or change color – you choose!
- Modulino™ Distance: a time-of-flight proximity sensor to measure distances with precision
- Modulino™ Movement: to perfectly capture movements like pitch, roll or tilt
- Modulino™ Light: a brightness and color sensor for light-aware projects
- Modulino™ Buzzer: to generate your own alarm sounds or simple tunes
- Modulino™ Thermo: a sensor for both temperature and humidity data
- Modulino™ Buttons: three buttons for quick project navigation
- Modulino™ Joystick: an analog joystick with integrated push button for intuitive interaction
- Modulino™ Vibro: a vibration motor to generate silent, tactile
- Modulino™ Latch Relay: an electromechanical relay for switching DC loads up to 30 V
- Or, consider the Arduino Plug and Make Kit to get your first set – as part of our easiest starter kit ever!
Need help?
Comprehensive resources are available through dedicated documentation pages, featuring tutorials and technical specifications for each Modulino.
Tech specs
| Board | Name | Modulino™ LED Matrix |
| SKU | ABX00152 | |

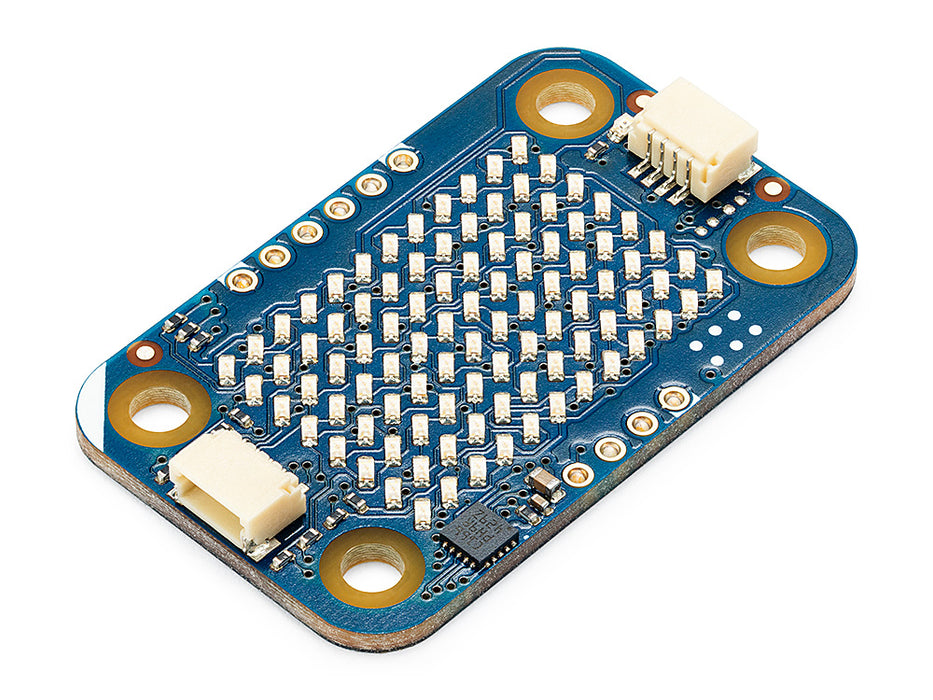

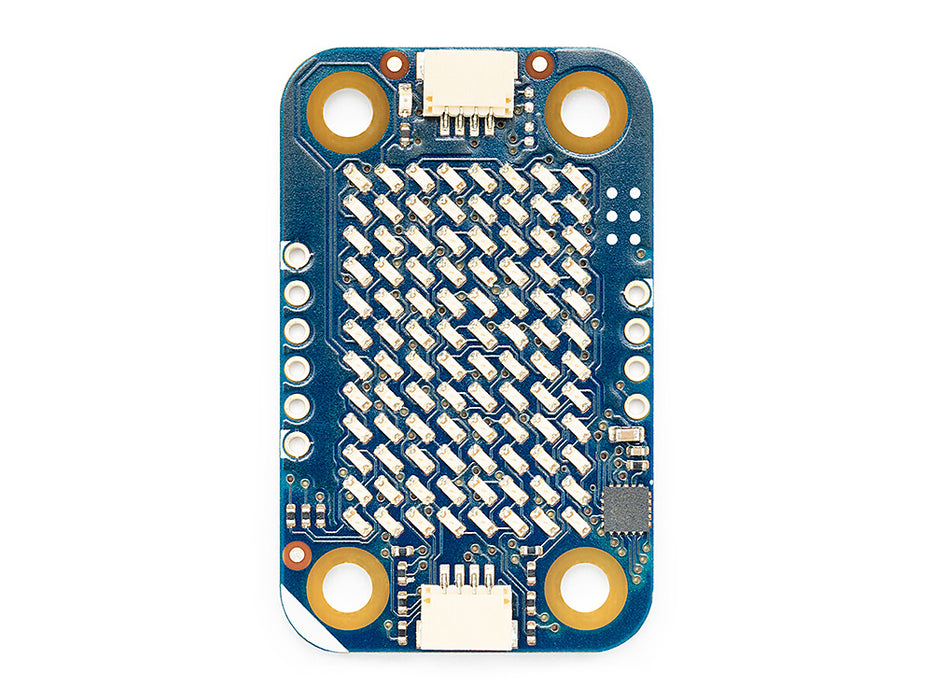

| Featured component | 8x12 charlieplexed LED matrix (96 blue LEDs) to the STM32C011 | |
| I2C address | 0x39 (address can change via software) | |
| Connector | QWIIC | I2C connection via QWIIC |
| Power | QWIIC connector | 3.3V |
| Pins | 3.3V | |
| Dimensions | Weight | 4.4 g |
| Width | 25.36 mm | |
| Length | 41 mm | |
| Accessories included | QWIIC cable (5 cm) | |
Conformities
Documentation
Learn more
Get Inspired
FAQs
Can I connect multiple Modulino LED Matrix nodes to a single QWIIC connector?
Absolutely! You can connect several Modulino LED Matrix nodes to the same QWIIC bus. To do this, you'll need to assign a unique I²C address to each Modulino node. The Modulino library includes an example sketch called AddressChanger that simplifies this process.
Is a QWIIC cable included with the Modulino node?

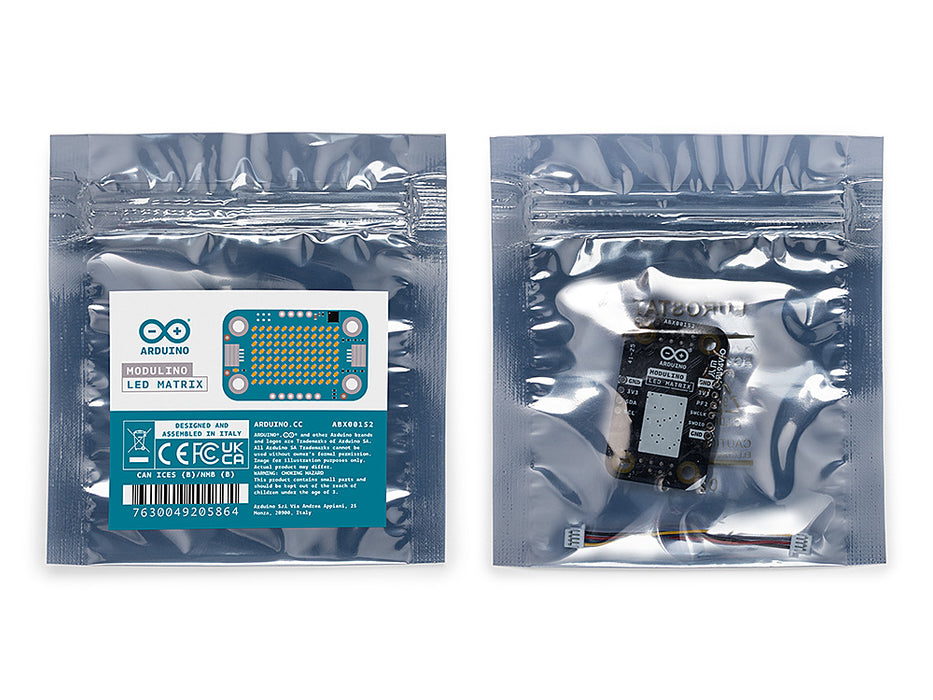

Yes, each Modulino node is packaged with a 5 cm QWIIC cable, so you can get started right away.
Are the Modulino nodes compatible with other QWIIC devices?
Yes, the Modulino nodes are designed to be compatible with other devices that adhere to the QWIIC standard and operate at 3.3V. Always double-check the voltage compatibility of any QWIIC devices you intend to use together.
What voltage do the Modulino nodes operate at?
The Modulino nodes are designed to operate at 3.3V. Ensure that your microcontroller or other QWIIC devices provide this voltage level to avoid damage.
Do I need any special libraries to use the Modulino nodes with Arduino?
Yes, you'll need to install the Modulino library either for Arduino language or Micropython, which provides functions and examples to easily interact with the nodes.
