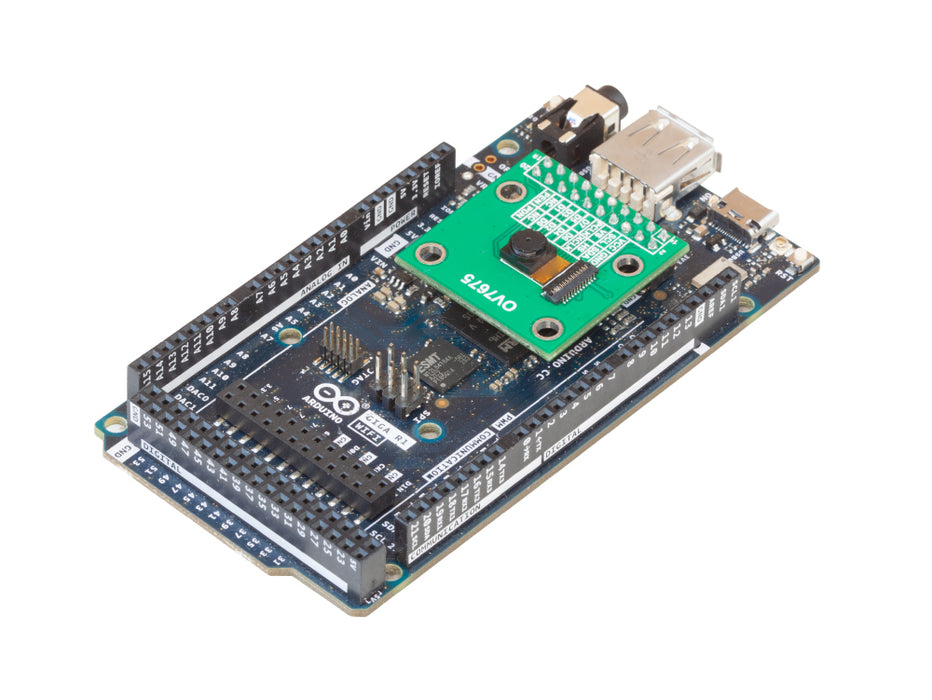

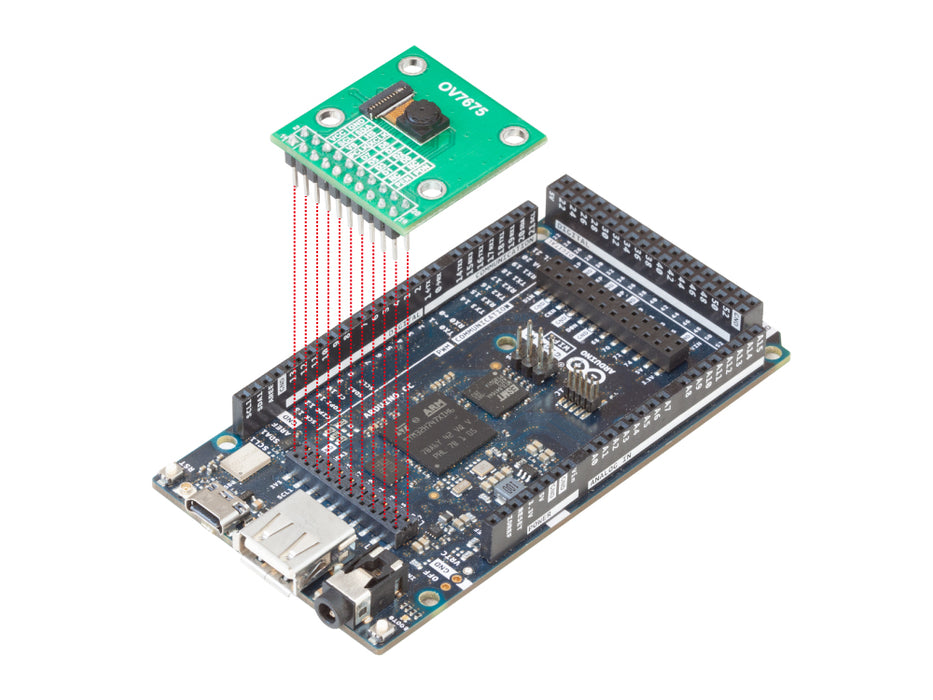

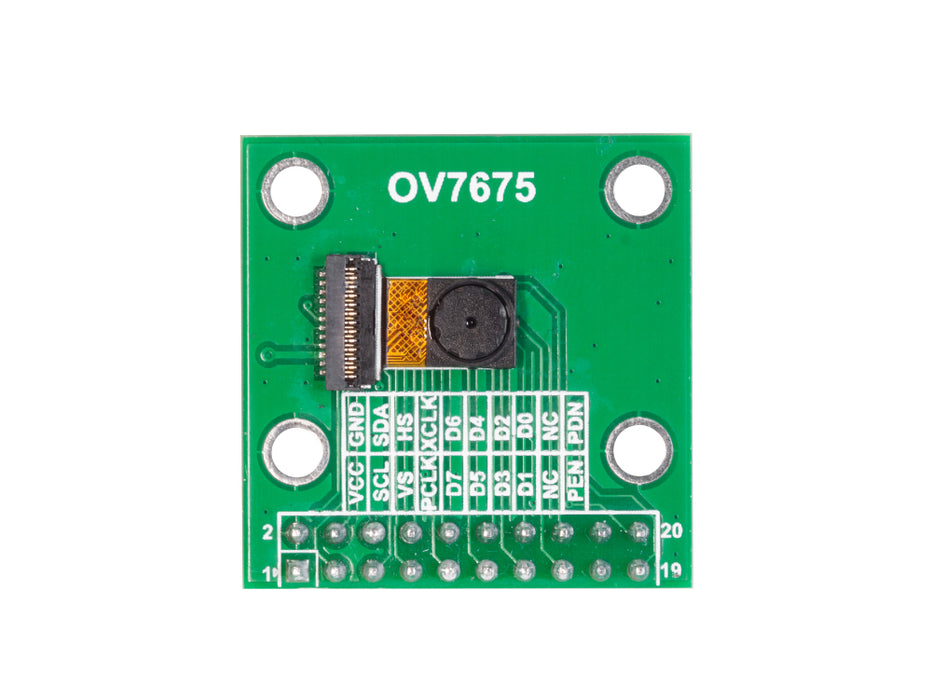

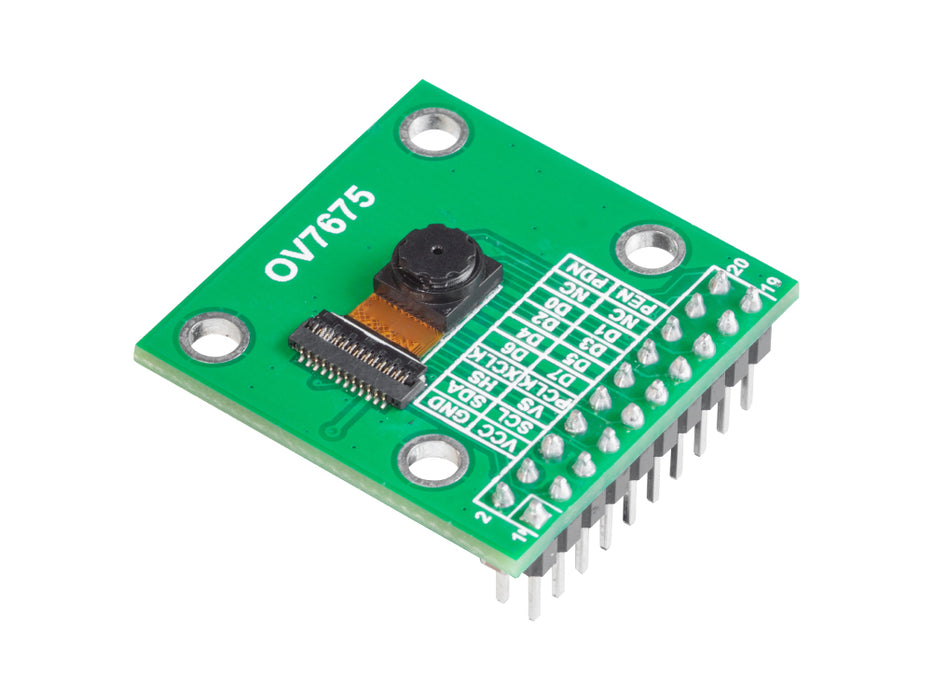

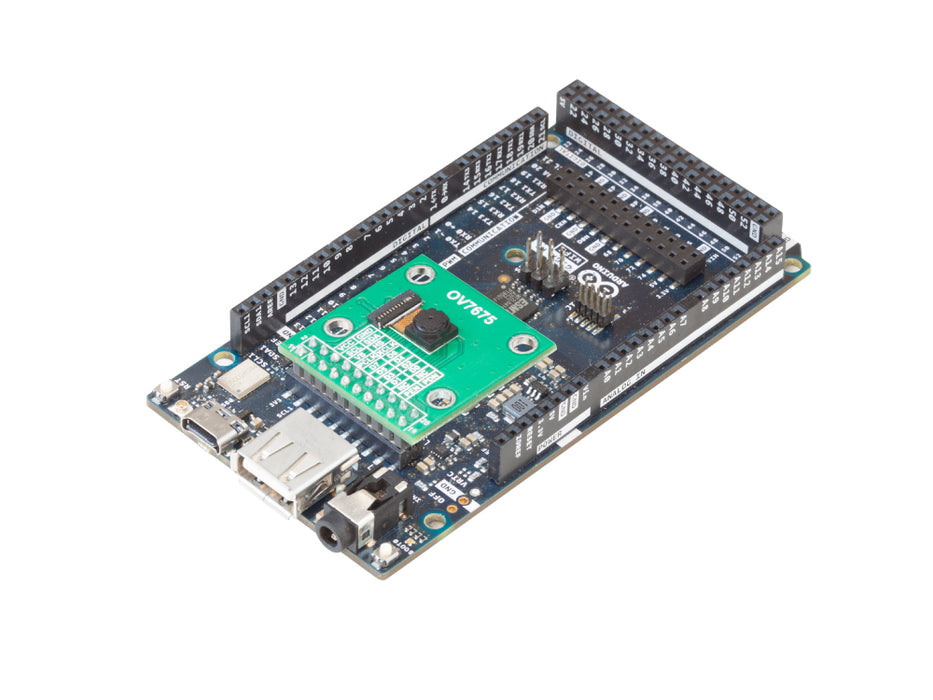

Arducam 0.3MP OV7675 20-pin DVP Camera Module for Arduino GIGA R1 WiFi

SKU TPX00197 Barcode 7630049204683 Show more
Original price $5.99 - Original price $5.99
Original price
$5.99
$5.99 - $5.99
Current price $5.99

Simple interface, compatibility with Arduino libraries, and seamless integration with the Arduino Giga board.

Overview

The Arducam OV7675 camera provides support for resolutions of up to 640x480 pixels, ensuring the capture of clear and sharp images. Its versatile range of features enhances the functionality of your projects. Whether you're developing a home automation system, a smart monitoring device, or any other Arduino-based project that requires visual input, the Arducam OV7675 camera offers a reliable and flexible solution. With its user-friendly interface, superior image quality, and seamless compatibility with the Arduino Giga board, it is an ideal choice for various applications where visual data is crucial.


Tech specs

Image Sensor OV7675
Active Array Pixels 640x480
Pixel Size 2.5µmx2.5µm
S/N Ratio 38 dB
Dynamic Range 71 dB
Interface 20-pin DVP
Shutter Type Electronic Rolling Shutter
Color Filter Array Quad-Bayer RGB
Output Format RAW/YUV/RGB
Resolution&Frame Rate 640x480/320x240/160x120@15fps
Lens Optical Size 1/9 Inch
EFL 1.75mm
F.NO 2.8
Field of View Angle 63.9°(D)
Lens Distortion <1.0%
Focus Distance 0.12M - ∞(AT=0.23M)
Power Supply AVDD: 2.7VA ~ 3.0V
DOVDD: 1.7V ~ 3.0V
DVDD: 1.5V
Operation Temp. -30° C to 70° C
Board Size 30.5mm x 30.5mm
