Gravity: Analog pH Sensor - Meter Kit

SKU TPX00016 Barcode 6959420908356 Show more
Original price $29.50 - Original price $29.50
Original price
$29.50
$29.50 - $29.50
Current price $29.50

Need to measure water quality and other parameters but haven't got any low cost pH meter?

Overview

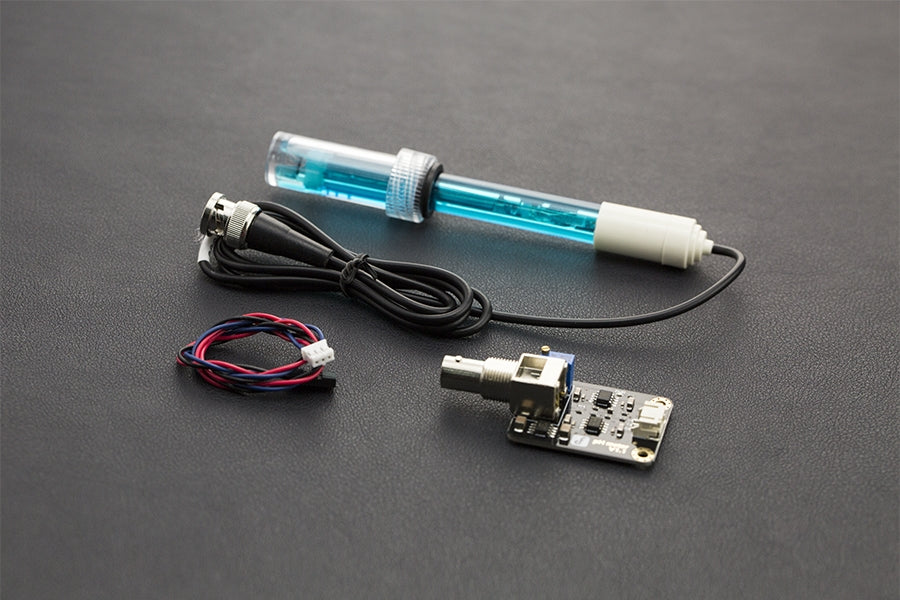

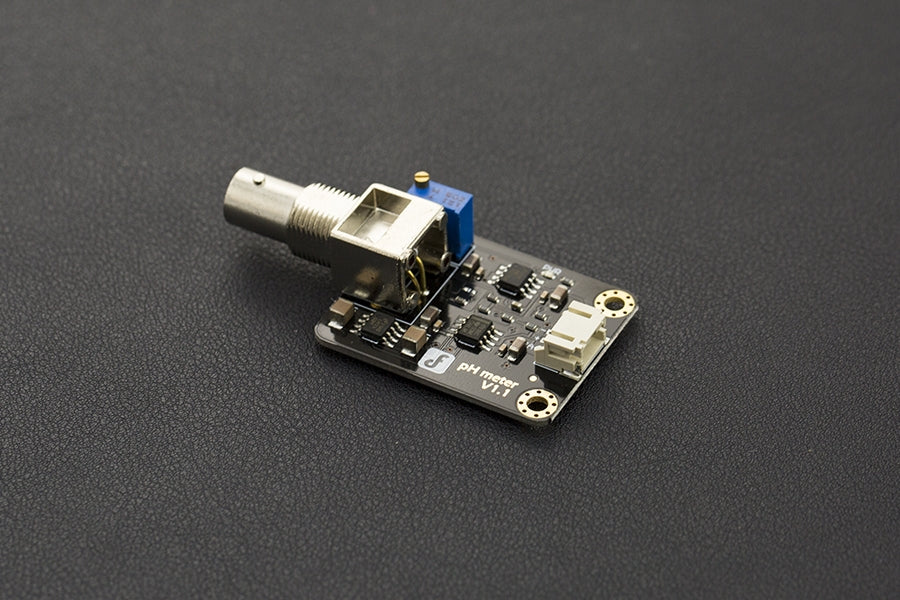

Analog pH Sensor / Meter Kit specially designed for Arduino controllers and has convenient and practical "Gravity" connector and a bunch of features. Instant connection to your probe an your Arduino to get pH measurements at ± 0.1pH (25 ℃). For most hobbyist this great accuracy range and it's low cost makes this a great tool for biorobotics and other projects! It has an LED which works as the Power Indicator, a BNC connector and pH2.0 sensor interface. To use it, just connect the pH sensor with BND connector, and plug the pH2.0 interface into the analog input port of any Arduino controller. If pre-programmed, you will get the pH value easily. Comes in compact plastic box with foams for better mobile storage.

Build your own pH meter gadget, or a water monitoring station for your water tanks. It could make for the ultimate water control device. Use it for your aquaponics or fish tanks or other materials that need measurements.


Tech specs

  • Module Power : 5.00V
  • Module Size : 43 x 32mm(1.69x1.26")
  • Measuring Range :0 - 14PH
  • Measuring Temperature: 0 - 60 ℃
  • Accuracy : ± 0.1pH (25 ℃)
  • Response Time : ≤ 1min

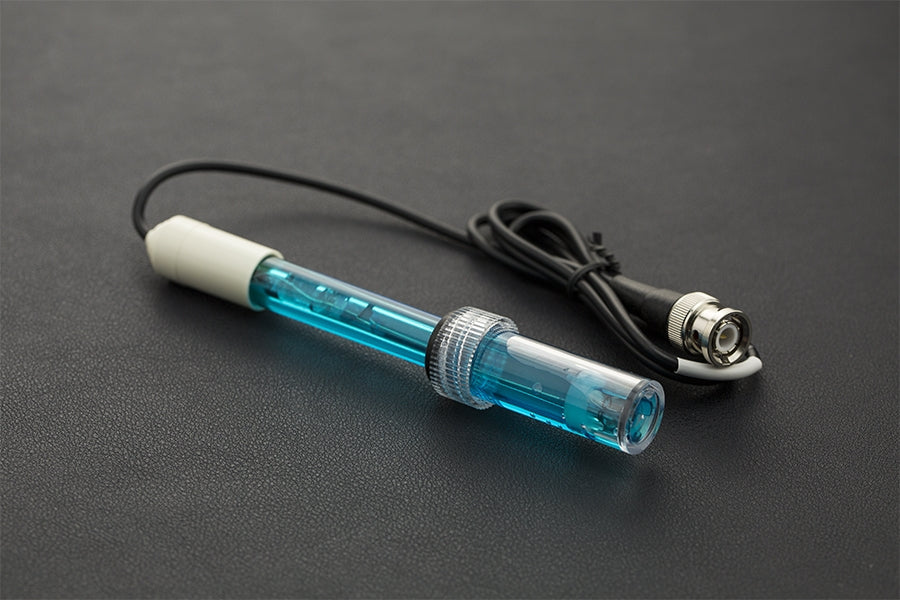

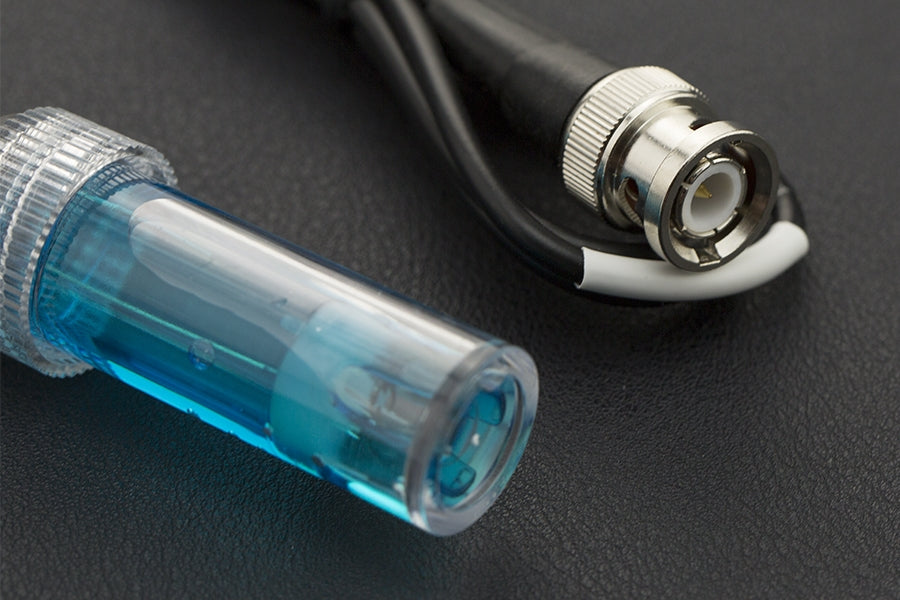

  • pH Sensor with BNC Connector
  • pH2.0 Interface ( 3 foot patch )
  • Gain Adjustment Potentiometer
  • Power Indicator LED
